Air Velocity, Volume Airflow Meters

For highly accurate, low-medium range Airspeed Measurement

GrayWolf’s handheld air velocity meters offer among the best accuracy specifications commercially available by mating highly accurate hotwire (thermal) air velocity sensor technology with the incredible capability of mobile and embedded computers, giving you access to the most versatile portable air velocity meters ever available.

  • Measures Air Velocity and Temperature.
  • Calculates basic Volume Flow Rate in real-time.
  • Extremely easy-to-use.
  • Patented design eliminates cable pull-thru when extending the telescoping probes (eliminating cable chafing/kinking issues).
  • Simple desktop data analysis and reporting with included WolfSense® PC software.
  • Highly accurate (±2% rdg.) for thermal comfort applications (measuring “drafts”),  clean room apps (HEPA filters), Laboratory Fumehood measurements & more…
  • Wide air velocity range (0 – 6000 fpm, 0 – 30 m/s) for duct air flow and diffuser volumetric flow measurement.
  • Optional Differential Pressure and Pitot Static Tubes for high-range (and high temperature) air velocity applications.
  • Optional software modules for Equal Area and Log-Tchebycheff volumetric flow
    calculation, or for fumehood face velocity measurement.
  • Optional Particle Counts, Relative Humidity Carbon Dioxide, CO and more…

GrayWolf Air Velocity monitors, meters, detectors and instruments efficiently log your data and enable enhanced documentation for your surveys by means of advanced software and the power of mobile computing.

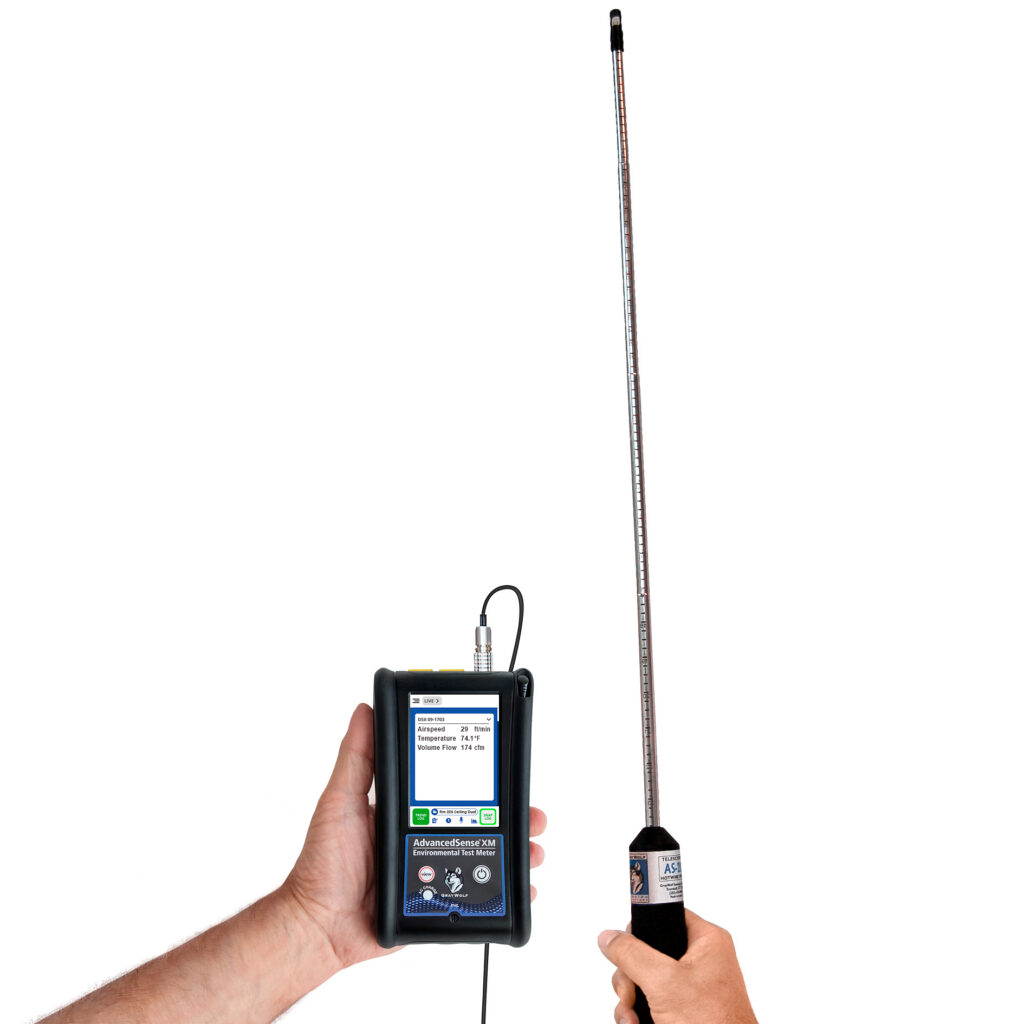

Hotwire Air Velocity Meter
AS-202A Telescoping and articulating (shown with Tablet PC in protective pouch).



GrayWolf’s telescoping hotwire anemometer probes for accurate, feature packed airspeed testing. The AS-201 probe extends from 14.9″ (38cm) to 31.5″ (80cm) The AS-202A probe telescopes from 21″ (53 cm) collapsed, out to 37″ (94cm) extended, with the top 6″ (15 cm) ratcheting from 180° (for direct duct entry) to 90° (ideal for fume hood and ceiling diffuser/filter measurement) to 45° (storage position).

AS-201 Patented telescoping design (shown with AdvancedSense multi-function meter).

      Brochures

Zephyr LDP Micromanometer
Zephyr-III Micromanometer

Application Notes

Software Modules

Download “Fume Hood Calibration, Face Velocity Testing”

Example AdvancedSense Screens

See Also:
HoodCal Laboratory Fumehood measurement, balancing
DuctCal Duct Traverses & Volume Airflow testing

Check out this brief overview of GrayWolf’s
advanced Airspeed meters/instruments &
how to organize a demonstration specific
to your Air Velocity measurement needs

Choose Your Platform

AdvancedSense Pro/BE

AdvancedSense PRO/BE and DSII
GrayWolf’s rugged, purpose-built AdvancedSense® Pro/BE meters are feature-rich, yet easy-to-use. Up to 32 simultaneous parameters connecting our reliable, multi-sensor DirectSense® probe(s), in addition to other internal and external sensors.

Tablet PCs

Zephyr-LDP ΔP module (with optional RH-AS2 %RH, °C/°F direct connect probe)
GrayWolf supplied WIN10 tablets are provided with relevant accessories. Or use WolfSense® LAP software to enable your own WIN 7/8/10 Laptop/PC. Multi-probe connection via cable or Bluetooth and other features as per the AdvancedSense Pro.

Zephyr

Zephyr™ III Digital Differential Air Pressure Meter

GrayWolf’s rugged, purpose-built Zephyr III®  meters are feature-rich, yet easy-to-use. Measure AirSpeed, Differential Pressure and connect an optional Temperature/ Humidity Probe.

GrayWolfLive Cloud

GrayWolfLive Cloud
GrayWolfLive® cloud platform for remote real-time access, data-logging, and alerts. Connect straight from WiFi enabled DirectSense II probes or via various GrayWolf meters, tablets, or smartphones. View data as text, tables, gauges, and graphs.
Zephyr™ III Digital Differential Air Pressure Meter
GrayWolf’s Zephyr Digital Manometer offers differential pressure with pitot tube airspeed, air velocity. Click here.

For Detailed Information:
