Particulate Meters, Monitors, Instruments

For IAQ, PM2.5, PM10 Measurement, Data-Logging (and more)

GrayWolf’s 6-channel handheld, desktop and wall-mount air particulate meters, PM2.5 and PM10 monitors, and particle counters all interface with GrayWolf DirectSense®, AdvancedSense® Pro, and WolfSense® LAP enabled instrumentation. With the exception of the PM-601 particulate concentration meters, they also can connect with WolfSense Mobile on Android and iOS devices. Use these particle meters as stand-alone instruments, and/or interface them to display and log particulates directly on a GrayWolf instrument, Mobile PC, smartphone, and/or to the cloud, all simultaneously with one or more GrayWolf multi-sensor probes.

PC-3016 – 6 Channel Particle Meter (left) and PM-601 Particle Concentration Monitor (right)

PC-3500 (left), PC-4005 (center), PC-5000 (right) 6-channel Particle Meters





  • Measure Particle Concentration/Counts as stand-alone meters
  • Simultaneously measure, in combination with GrayWolf probe parameters
  • Works in conjunction with GrayWolf DirectSense II IAQ probesToxic Gas probesTVOC probesAS-201/202A Air Velocity probes and/or Zephyr-LDP or DP-702LH auto-zeroing Differential Pressure sensors
  • 0.1µm and higher mass concentration with the GrayWolf’s PM-601 (with optional cyclones to more precisely define PM1, PM2.5 and/or PM10)
  • 0.3µm and larger particles with GrayWolf’s PC-3016, PC-3500, PC-4000 and PC-5000 six size range particle meters which can display/log calculated mass concentration (as PM0.5, PM1.0, PM2.5, PM5.0, PM10 & TPM in µg/m3) or as particle counts Note: Particle Counts not available on WolfSense Mobile enabled devices at this time.
  • Use the particulate meters as unconnected dataloggers, downloading logged data direct to GrayWolf’s advanced data management and reporting software; WolfSense PC
  • Or interface the particulate meters to a GrayWolf AdvancedSense Pro, WolfSense LAP enabled Windows tablet or WolfSense Mobile enabled iOS or Android device (optional WolfRadio™ XM required) and store ALL survey information; data AND audio/text/photo/video notes
  • When interfaced, includes easily accessible, on-board parameter tips, an IAQ particle sizing chart, government and industry guidelines, help videos, optional GrayWolfLive® Wi-Fi access and much more
  • Optional WolfSense ARG Advanced Reporting software for highly efficient, detailed, automated reports
  • %RH and Temperature optionally available on all models
  • CO2 and TVOC sensors optionally available, built right into the PC-4005 or PC-5005, or utilize a DirectSense II probe
  • Up to 31 additional sensors, accessible for all models, when simultaneously interfaced to DirectSense II probe(s) via AdvancedSensePro/Smartphone/Tablet/PC/Cloud
  • Added available sensors include CO, NO2, O3, HCHO, NH3, Cl2, H2S and many more
WolfRadio-XM 3016

WolfRadio-XM-3016 module for PC-3016 particle meter enables connectivity to Wi-Fi, Android and iOS devices.

WolfRadio XM 3500

WolfRadio-XM-3500 module for PC-3500/4000/4005/5000/5005 particle meters.

PC-3016 6-Channel Particle meter in use with Bluetooth connection to 2 x DirectSense II IAQ probes and to Android device.

PC-3016 6-Channel Particle meter in use with Bluetooth connection to 2 x DirectSense II IAQ probes and to Android device.

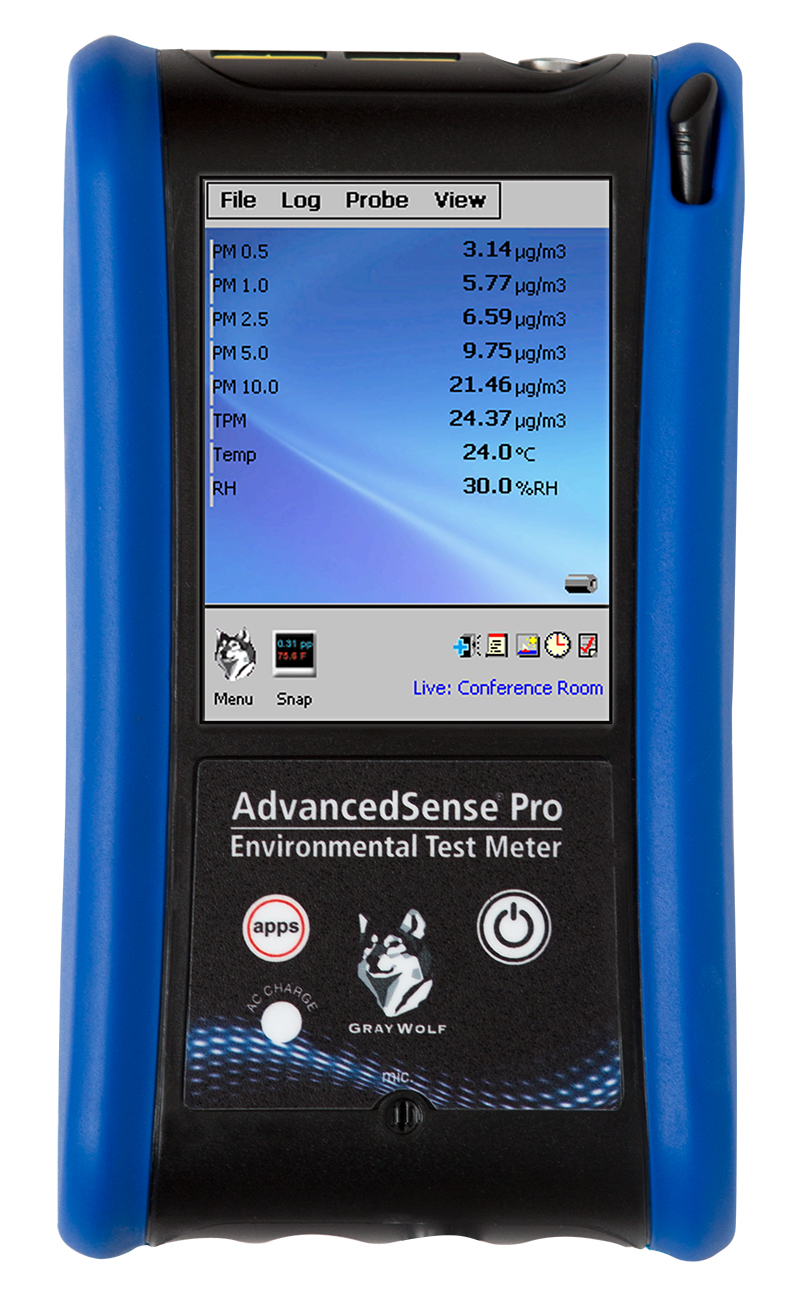

When connecting to an AdvancedSense Pro meter, smartphone, or Windows, iOS or Android tablet, Particulate readings may be displayed/logged on their own or in combination with other GrayWolf sensors.

PC-3500 in use with AdvancedSense PRO and DSII

PC-3500 6-Channel Particle meter in use with cable connection to DirectSense II IAQ probe and to AdvancedSense meter.

Check out this brief overview of GrayWolf’s advanced Air Quality meters/instruments & how to organize a demonstration specific to your Particulate measurement needs.
